PREFABRICATED HOUSE 069 - SCHEMATIC DESIGN

[PDF+CAD] - Architectural schematic design digital drawing set consisted of nine (9) Α4 pages and a cover.

The drawing set includes a PDF file and a CAD file. The PDF file offers a standard and convenient way to view the drawings on your preferred electronic device. The CAD file is delivered in DWG format and can be used by a local design professional in case you would like to make substantial changes to the house plan.

The architectural schematic design package is intended to give a basic description of the floor plan and elevations with dimensions, including interior layout and overall room sizes. It is a set of plans created for reviewing the design concept and obtaining bids and estimates from house manufacturers before you make the decision to go ahead with construction.

Architectural schematic design drawings can not be used for the issue of a building permit or the construction of the house.

The package includes the following sheets:

• Cover Sheet

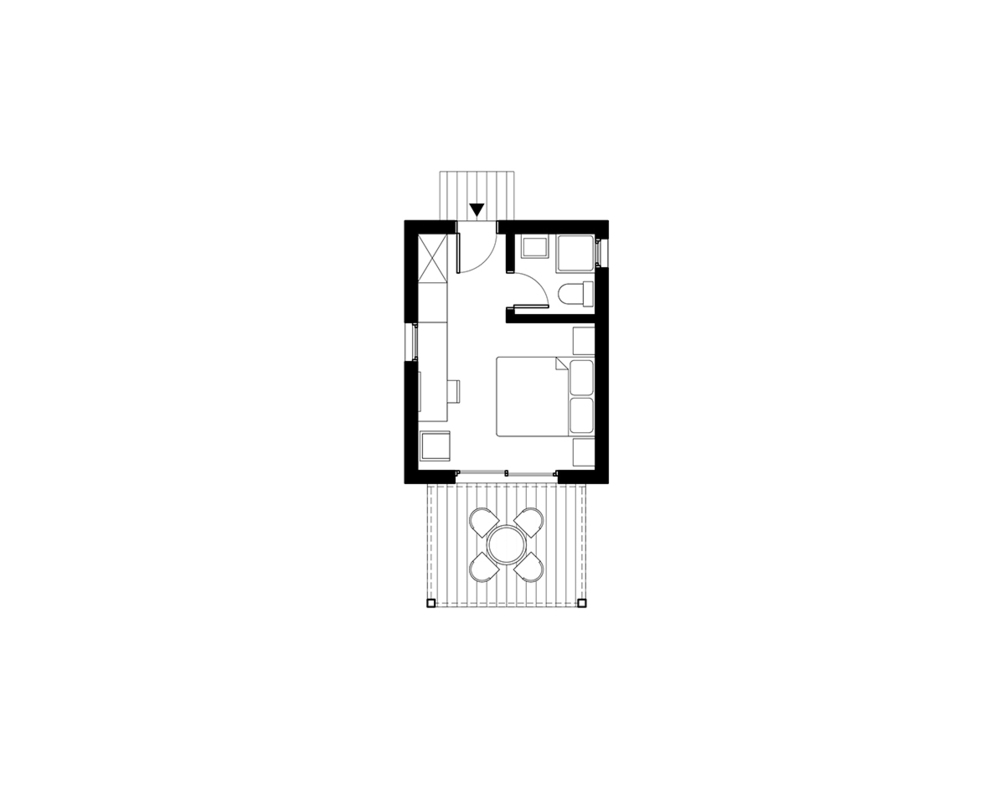

• Sheet 1 / Ground Floor Plan (Scale 1:100)

• Sheet 2 / Terrace Plan (Scale 1:100)

• Sheet 3 / Sections (Scale 1:100)

• Sheet 4 / Elevations (Scale 1:100)

• Sheet 5-9 / 3D Model


NOTE: All dimensional information is in metric units (metres).

ROOMS:

• 1 Bedroom

• 1 Bathroom


NET AREA: 16,76 sqm

TOTAL AREA: 21,73 sqm
